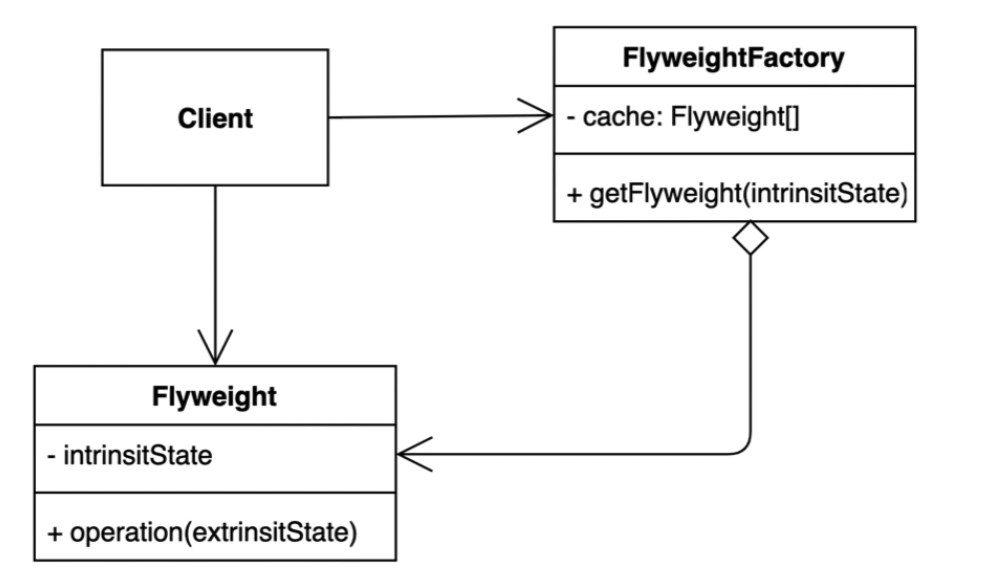

1. 플라이 웨이트(FlyWeight) 패턴
- 객체를 가볍게 만들어 메모리 사용을 줄이는 패턴.
- 자주 변하는 속성과 변하지 않는 속성을 분리하고 재사용하여 메모리 사용을 줄일 수 있다.
2. 패턴 적용 전 코드
- Character를 생성시 중복되는 파라미터가 존재함. (fontFamily, fontSize)
- 중복은 상황과 생각에 따라 다르게 결정될 수 있음.
public class Character {
private String value;
private String color;
private String fontFamily;
private Integer fontSize;
public Character(String value, String color, String fontFamily, Integer fontSize) {
this.value = value;
this.color = color;
this.fontFamily = fontFamily;
this.fontSize = fontSize;
}
}
public class Client {
public static void main(String[] args) {
Character character1 = new Character("h", "white", "Nanum", 12);
Character character2 = new Character("e", "white", "Nanum", 12);
Character character3 = new Character("l", "white", "Nanum", 12);
Character character4 = new Character("l", "white", "Nanum", 12);
Character character5 = new Character("o", "white", "Nanum", 12);
}
}
3. 패턴 적용
- Font 객체는 공유 객체이므로 한 부분에서 수정될 경우 모든 객체에 적용되므로 불변(immutable)하게 만들어준다.
- FontFactory를 통해 Font를 생성하며 캐싱기능을 제공하여 중복되는 메모리 사용을 줄여준다.
public final class Font {
private final String family;
private final Integer fontSize;
public Font(String family, Integer fontSize) {
this.family = family;
this.fontSize = fontSize;
}
public String getFamily() { return family; }
public Integer getFontSize() { return fontSize; }
}
public class FontFactory {
private Map<String, Font> cache = new HashMap<>();
public Font getFont(String fontName) {
if (this.cache.containsKey(fontName)) {
return this.cache.get(fontName);
}
String[] split = fontName.split(":");
Font font = new Font(split[0], Integer.parseInt(split[1]));
cache.put(fontName, font);
return font;
}
}
public class FlyweightClient {
public static void main(String[] args) {
FontFactory fontFactory = new FontFactory();
Character c1 = new Character("h", "white", fontFactory.getFont("nanum:12"));
Character c2 = new Character("e", "white", fontFactory.getFont("nanum:12"));
Character c3 = new Character("l", "white", fontFactory.getFont("nanum:12"));
Character c4 = new Character("l", "white", fontFactory.getFont("nanum:12"));
Character c5 = new Character("o", "white", fontFactory.getFont("nanum:12"));
}
}
4. 장점 및 단점
4.1. 장점
- 애플리케이션에서 사용하는 메모리 사용량을 줄여 줄 수 있다. (캐싱)
4.2. 단점
- 애플리케이션 계층의 복잡도가 상승함다. (코드 작성 내용 공유 필요)
